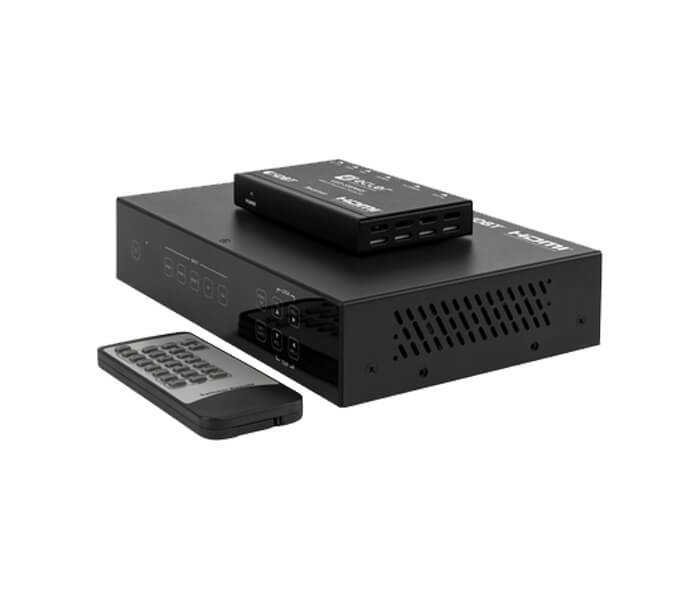

4K 5x1 Presentation SWITCHER with HDBaseT Extender
VEO-SWM45 is a compact 4K presentation switcher and scaler that supports 3 HDMI 2.0 ports, VGA and a DisplayPort 1.2a sources with HDMI and HDBaseT outputs. An integrated audio matrix allows to embed 5 unbalanced stereo signals and route them independently to the output. Featuring a microphone/line input, with adjustable ducker and selectable phantom power, audio signals can be mixed with the source audio and sent to the amplifier through the line-level output. With simple, flexible, integration-friendly control options (including front panel, built in Web UI, contact closure panels, RS-232, telnet and IR remote), VEO-SWM45 is a flexible and smart solution, tailor-made for small-to-medium sized commercial applications such as corporate, education and training room environments.
Key Features
 • Ultra High Definition source selector with presentation features and integrated scaler
 • Three HDMI 2.0 Inputs, one VGA (YPbPr/CVBS) and one DisplayPort video input
 • Five Unbalanced Stereo and one Balanced Microphone/Line Inputs with 48V phantom power
 • Digital input video resolutions up to 4Kx2K (4096x2160@60Hz YUV 4:4:4)
 • VGA resolution up to 1920x1200@60Hz
 • Output resolutions up to 4096x2160@30Hz
 • Mirrored HDBaseT output for extension up to 70m
 • Included HDBaseT Receiver
 • HDCP 2.2 Compliant
 • Supports automatic and manual switching options
 • Supports EDID management
 • Supports PCM stereo pass-through
 • Touch Panel buttons, Embedded Web GUI, IR Remote, Logic contacts, RS-232 control and TCP/IP control (EclerNet Manager and third party remote control compatible)
Applications
 • Corporate meeting room
 • Small conference room
 • Classroom

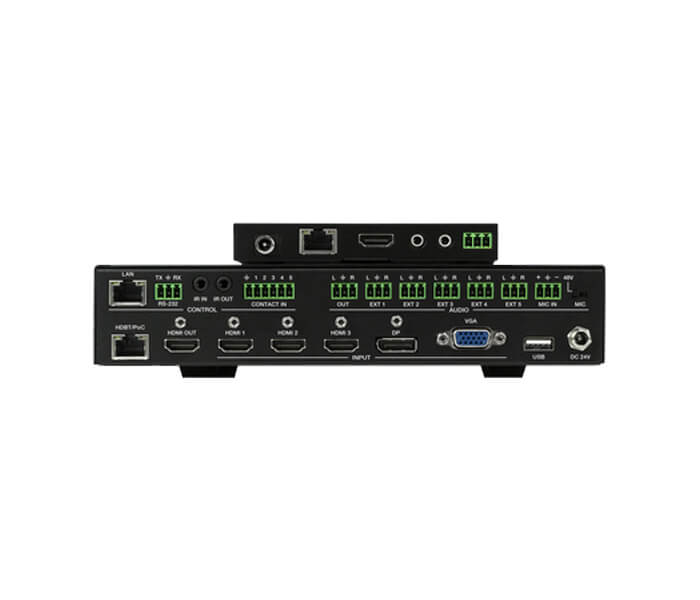

Inputs      3xHDMI, 1xVGA, 1xDisplayPort, 1xMic ST, 5xLine ST
Outputs     1xHDMI, 1xHDBaseT (mirrored), 1xLine ST
Input Resolutions        HDMI/DisplayPort: up to 3840x2160@50/60Hz (4:4:4) CVBS: PAL/NTSC 3.58 / NTSC 4.43 / SECAM/PAL M/PAL N YPBPR: 480i to1080p VGA: 640x480/60 Hz to1920x1200/60 Hz
Output Resolutions      3840x2160@30, 3840x2160@25, 1920x1080p60, 1920x1080p50, 1280x720p/60, 1280x720p/50, 1024x768/60, 1280x800/60, 1360x768/60, 1400x1050/60, 1680x1050/60, 1920x1200/60
Features Scaling,       EDID Mgmt, HDCP, PoH
Control Options        Web, Telnet, RS-232, IR, Contact closure
Dimensions(WxHxD)Â Â Â Â Â 220 x 44 x 220 mm / 8.66" x 1.76" x 8.66"
Weight               1,25 Kg / 2.75 lb
