Moving Head AECO 20 Acme

Functional Overview

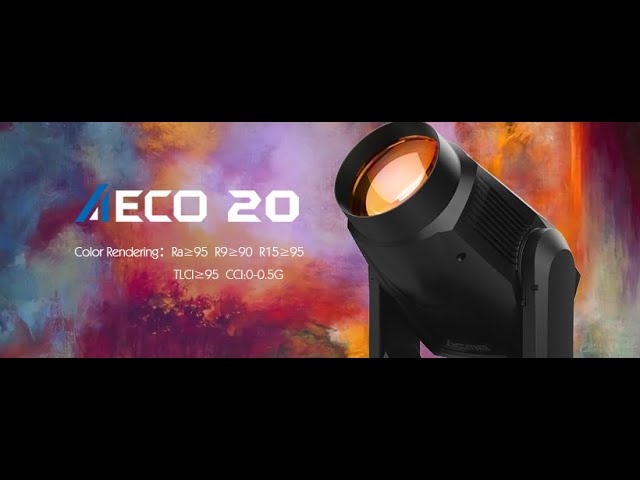

The innovative high color rendering LED engine is the foundation of our AECO series and we developed a milestone product by applying the upgrading 1400W HCRI LED: AECO 20.
Firstly, we revolutionize the color of this giant, so you will see the perfect Red(630nm±3nm), Green(535nm±3nm), and Blue(450nm±3nm) after mixing the innovative CMY flags. Secondly, with the brand new HCRI LED, AECO 20 delivers excellent white light of RA≥95, R9≥90, R15≥95, TLCI≥95, and CCI 0-0.5G with no compromise.
Beneath the large 200mm frontal lens, a complex but compact functional area is waiting. Fixed gobos, rotating gobos, saturated colours, 2 prisms, animation disk, framing shutters, linear CTO, all functions can be layered to create original and dynamic effects while maintaining a high luminous flux - at a tight angle of 5°, the luminous flux reaches 84,000 lx @5m and 21,000 lx @10m. With the total lumen output over 36,000lm, the AECO 20 is not only a 4-in-1 hybrid fixture but also an energy-saving and environmentally friendly partner, which is ideal for all kinds of medium to large scale concert, TV studio, theatre show, and multiple kinds of art performances.

Features
Fitted with a powerful 1400W LED engine and a large 200mm frontal lens
Color Temperature: 6,000K
Total lumen output up to 36,000 lm
Color Rendering:
Ra≥95,R9≥90,R15≥95
TLCI≥95
TM-30 Rf: 91
TM-30 Rg:99
Motorized focus
Linear CMY colour mixing
Excellent colour macro effect
Variable CTO: 2700K-6000K
Rotating gobo wheel: 7 indexable and interchangeable gobos,plus open
Static gobo wheel: 9 gobos plus open
2 x Color wheels: 11 complementary colors plus open
Animation wheel: 1 graphic animation effect wheel with continuous rotation in both directions and can be changed into other wheel
2 Combinable Rotating and Indexable Prisms: one 4-facet prism, one 4-facet linear prism
Zoom Range: 5°-50
2 Variable Frost Filters: Light and Medium
Motorized linear Iris
Smooth dimming from 0-100%
Outstanding strobe effect with various speeds
4 Rotating full blackout framing shutter blades with individual positionable; Rotation of the framing system module: +/- 60°
2 x Fixed foldable clamps for 50mm truss
Flicker free management
Dust-proof and oil-proof design

Technical & Specification
Light source
Fitted with a powerful 1400W LED engine and a large 200mm frontal lens
LED life expectancy: 20000 hours

Optical System
Advanced optical design to ensure precise gobos and colors
High-efficiency optical system, zoom ratio 1:10
Diameter of frontal lens: 200 mm
Zoom Range: 5°-50

Control and Program
4-button touch panel
Display: LCD display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol modes: 4
Control channels: 37/28/31/22
Firmware Upgrade: Upgrade via DMX link or USB disk
Pan/Tilt Resolution: 16 bit

PAN & TILT
Pan movement: 540
Tilt movement: 270
Automatic Pan/Tilt position correction
Fixation: Pan/Tilt lock

Rotating Gobos
7 Interchangeable high-precision glass gobos, plus open
Adjustable-speed rotating gobo in both directions
Image diameter: 23mm
Outside diameter: 28 mm
"SLOT & LOCK system for easy gobo replacement

Static Gobos
9 High-precision gobos, plus open

Color Wheel
2 x Color wheels: 11 complementary colors in total plus open

Framing System
Shutter Blades: 4 Blades, each with separate movement and full blackout
Movement: Smooth with variable speed, ultrafast for creating mid-air effects
Positioning: The blades can be precisely positioned
Rotation: +- 60° of the complete framing system

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: 100-240V~ 50/60Hz
Power consumption: 1580 W
Power In/Out：Power Connector in/out
Data In/Out: 3pin/5-pin XLR, RJ45 connector

Fixture Specification
Fixture Dimensions:
Width: 465 mm (18.3″)
Depth: 352 mm (13.9″)
Height: 816 mm (32.1″)
Weight:47.5 kg (104.7 lbs)
Flight Case Dimensions:
Width: 715 mm (28.1″)
Depth: 595 mm (23.4″)
Height: 905 mm (35.6″)
Weight: 93.5 kg (206.1 lbs) (Single Loader Case)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Installation
Available in horizontal or vertical mounting
Universal operating position
2 x Fixed foldable clamps for 50mm truss
Safety rope hole

Included Items
Digital User Manual
Power cable
2 x Fixed foldable clamps for 50mm truss

Optional Accessories (with item code)
Raincover：3033001750
Flight case
Signal line：3-pin & 5-pin signal line
Safety rope: 2060001603-A (SW-05)
