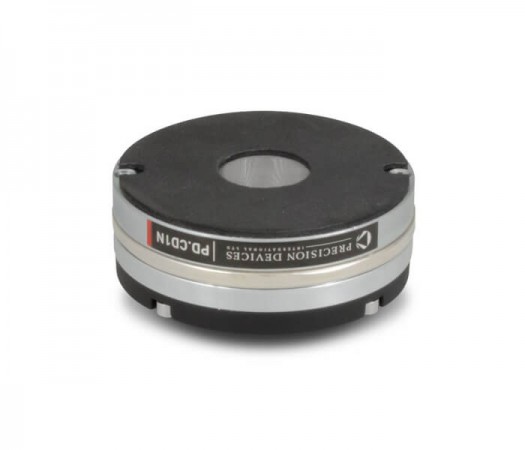

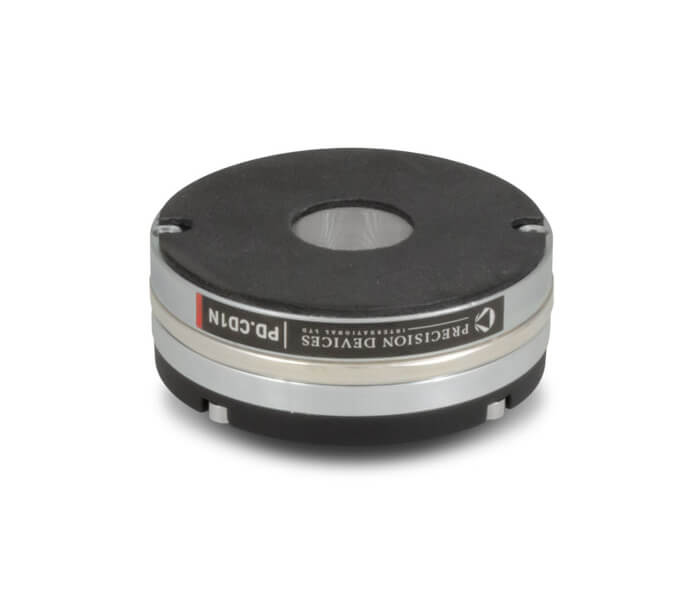

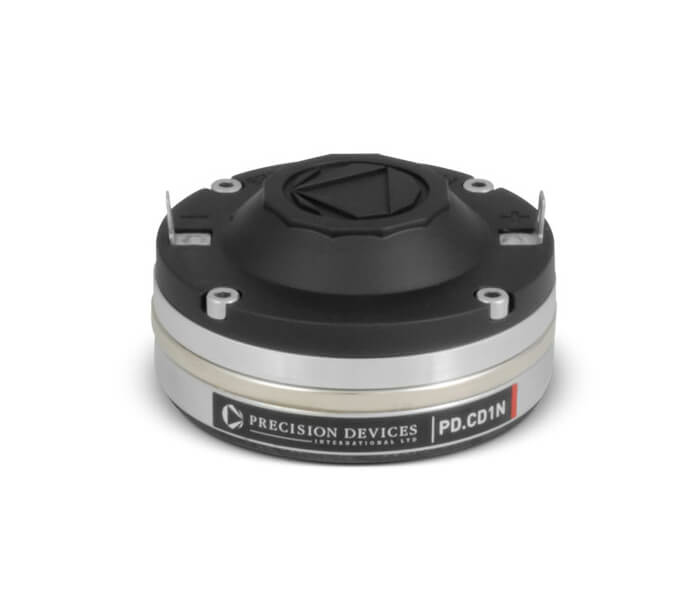

The PD.CD1N is an ideal driver for professional high performance applications that can be used in traditional 2-way systems or as part of a larger multi-way long throw system. The radial neodymium motor structure allows close coupling due to the compact size and footprint. Adaptor plate is available for traditional Flare PCD fixings.
SPECIFICATIONS
Sound Channel / Throat Size 1.0" / 25.4 mm
Voice Coil Diameter 1.73" / 44 mm
Available Impedances 4 Ohm / 8 Ohm / 16 Ohm
Power Rating (above 1kHz) 1 40 W (A.E.S.)
Sensitivity (1W - 1m, on axis, on horn) 2 109 dB
Frequency Range 3 900 Hz - 19 kHz
Recommended Crossover Frequency (Filtered at 18 dB/ Octave) 1800 Hz
Minimum Impedance 2.6 kHz - 7.5 Ω
Voice Coil Material Copper Clad Aluminium
Coil Former Material Kapton
Flux Density 1.8 Tesla
Diaphragm Material PEEK
Suspension Material PEEK
Surround / Edge Termination Flat
Phase Plug Design Annular
Phase Plug Material ABS
Magnet Material Neodymium
Connector Type Solder Tab
