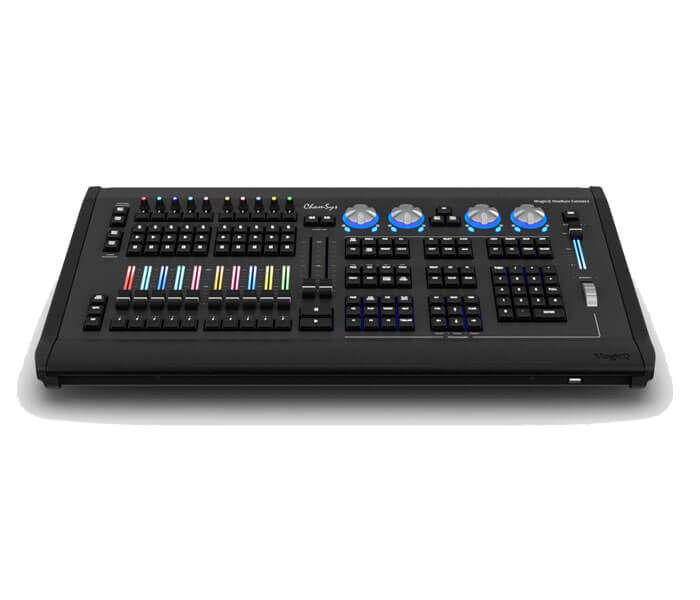

MagicQ Stadium Connect Chamsys

MagicQ Stadium Connect is a PC-based programming interface with the same programming keyset and dual crossfaders as the MQ250M and MQ500M. Outputting 64 universes directly from the wing, and the ability to pre-vis up to 256 universes, MagicQ Stadium Connect is the ultimate solution for complete control on-the-go. With 10 backlit and motorised faders and 10 backlit playback encoders with executors with plenty of programmable real estate for your show.

Hardware Specifications:
Direct DMX Outputs: 4
Motorised Playbacks: 10
Encoder Playbacks: 10
Total no of Playbacks: 20 (10+10)
Dual Cross Faders: Yes
Attribute Encoders: 4
Backlit Keys: Yes
Illuminated Playback/Encoders with RGB control: Yes
Intensity Wheel: 1
Network Ports: 1
USB Ports : 4
Audio Input Sound to Light: Yes
MIDI Ports 1 in and out: Yes
LTC Timecode Ports in and out: Yes
10Scene Port: 1
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:
Universes direct from software (via Artnet/sACN/Pathport): 64
Visualisation Universes: 256
Max Number of DMX Channels: 32,768
Max Number of Fixtures Supported: 32,768
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
